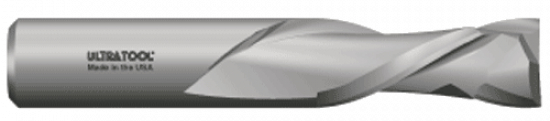

Solid Carbide Compression Routers

Solid Carbide Compression Routers

  • 2+2 have two Right Hand Flutes and 2 Left Hand Flutes
  • 4+4 have 4 Right Hand Flutes and 4 Left Hand Flutes

Designed for Compression routing of a wide range of materials. Polished cutting edges shears the work piece with a super sharp primary relief.

Tolerance
Diameter +.000 / -.005
Shank +.0000 / -.0003

Available coated.

Full Range Specification

Info

Part No

Description

Flute
Length
mm
O/A
Length
mm
FlutesShank
Dia
mm

In Stock

Price

Qty

Add

ROUT22-1/4

6.35mm (2 RH Flute +2 LH)

196346.35

0

£52.34

ROUT22-1/4L

6.35mm (2 RH Flute +2 LH)

256346.35

0

£56.85

ROUT44-1/4

6.35mm (2 RH Flute +2 LH)

236386.35

0

£58.09

ROUT44-1/4L

6.35mm (2 RH Flute +2 LH)

316386.35

0

£62.61

ROUT22-3/8

9.525mm (2 RH Flute +2 LH)

257649.525

0

£77.63

ROUT22-3/8L

9.525mm (2 RH Flute +2 LH)

287649.525

0

£77.63

ROUT22-1/2A

12.70mm (2 RH Flute +2 LH)

2576412.7

0

£87.29

ROUT22-1/2B

12.70mm (2 RH Flute +2 LH)

2876412.7

0

£88.77

ROUT22-1/2C

12.70mm (2 RH Flute +2 LH)

28101412.7

0

£110.44

ROUT22-1/2D

12.70mm (2 RH Flute +2 LH)

3576412.7

0

£91.91

ROUT22-1/2E

12.70mm (2 RH Flute +2 LH)

35101412.7

0

£114.83

ROUT22-1/2F

12.75mm (2 RH Flute +2 LH)

41101412.7

0

£117.82

ROUT22-5/8

15.875mm (2 RH Flute +2 LH)

41101415.875

0

£217.00

ROUT22-5/8M

15.875mm (2 RH Flute +2 LH)

47127415.875

0

£241.65

ROUT22-5/8L

15.875mm (2 RH Flute +2 LH)

57127415.875

0

£252.81

ROUT22-3/4

19.05mm (2 RH Flute +2 LH)

41101419.05

0

£246.04

ROUT22-3/4L

19.05mm (2 RH Flute +2 LH)

63127419.05

0

£307.40
