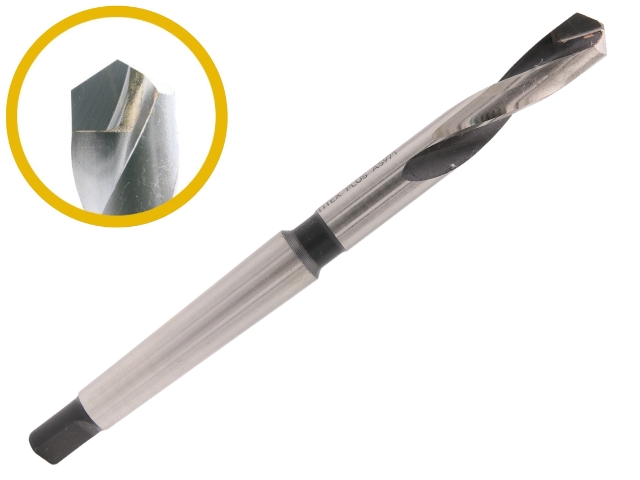

DCTTS - Carbide Tipped Drill, Taper Shank
Point angle 118 degrees. Metric Size range available from 8.00mm to 32.00mm with short flutes for rigidity. Fractional Sizes from 1/2" to 1.1/8" with standard flutes.
Click on part number to check stock
Part No. |
Description | Flute Length | O/A Length | Morse Taper Size | Point Angle | Price | Qty | Add | More |
| DCTTS-8.00 | 8.00mm | 45.0 | 135.0 | 1 | 118 | £41.48 | |||
| DCTTS-8.50 | 8.50mm | 45.0 | 135.0 | 1 | 118 | £47.75 | |||
| DCTTS-9.00 | 9.00mm | 45.0 | 135.0 | 1 | 118 | £39.81 | |||
| DCTTS-9.50 | 9.50mm | 50.0 | 140.0 | 1 | 118 | £44.06 | |||
| DCTTS-10.00 | 10.00mm | 50.0 | 140.0 | 1 | 118 | £36.74 | |||
| DCTTS-10.50 | 10.50mm | 50.0 | 140.0 | 1 | 118 | £47.15 | |||
| DCTTS-11.00 | 11.00mm | 50.0 | 140.0 | 1 | 118 | £39.32 | |||
| DCTTS-11.50 | 11.50mm | 56.0 | 146.0 | 1 | 118 | £47.75 | |||
| DCTTS-12.00 | 12.00mm | 56.0 | 146.0 | 1 | 118 | £41.48 | |||
| DCTTS-12.50 | 12.50mm | 56.0 | 146.0 | 1 | 118 | £44.28 | |||
| DCTTS-13.00 | 13.00mm | 63.0 | 146.0 | 1 | 118 | £44.28 | |||
| DCTTS-33/64 | 13.097mm | 117.4 | 216.0 | 2 | 118 | £49.64 | |||
| DCTTS-13.50 | 13.50mm | 63.0 | 168.0 | 2 | 118 | £61.27 | |||
| DCTTS-35/64 | 13.891mm | 123.8 | 222.0 | 2 | 118 | £ POA | |||
| DCTTS-14.00 | 14.00mm | 63.0 | 168.0 | 2 | 118 | £61.27 | |||
| DCTTS-9/16 | 14.288mm | 123.8 | 222.0 | 2 | 118 | £71.07 | |||
| DCTTS-14.50 | 14.50mm | 63.0 | 168.0 | 2 | 118 | £61.27 | |||
| DCTTS-37/64 | 14.684mm | 123.8 | 222.0 | 2 | 118 | £71.99 | |||
| DCTTS-15.00 | 15.00mm | 63.0 | 168.0 | 2 | 118 | £61.27 | |||
| DCTTS-19/32 | 15.081mm | 123.8 | 222.0 | 2 | 118 | £65.88 | |||
| DCTTS-39/64 | 15.478mm | 123.8 | 222.0 | 2 | 118 | £83.43 | |||
| DCTTS-15.50 | 15.50mm | 70.0 | 175.0 | 2 | 118 | £68.19 | |||
| DCTTS-5/8 | 15.875mm | 123.8 | 222.0 | 2 | 118 | £72.09 | |||
| DCTTS-16.00 | 16.00mm | 70.0 | 175.0 | 2 | 118 | £68.19 | |||
| DCTTS-16.50 | 16.50mm | 70.0 | 175.0 | 2 | 118 | £76.05 | |||
| DCTTS-21/32 | 16.669mm | 130.1 | 229.0 | 2 | 118 | £70.13 | |||
| DCTTS-17.00 | 17.00mm | 70.0 | 175.0 | 2 | 118 | £76.05 | |||
| DCTTS-43/64 | 17.066mm | 130.1 | 229.0 | 3 | 118 | £85.70 | |||
| DCTTS-17.50 | 17.50mm | 80.0 | 185.0 | 2 | 118 | £76.05 | |||
| DCTTS-18.00 | 18.00mm | 80.0 | 185.0 | 2 | 118 | £76.05 | |||
| DCTTS-23/32 | 18.256mm | 142.8 | 241.0 | 2 | 118 | £65.87 | |||
| DCTTS-18.50 | 18.50mm | 80.0 | 185.0 | 2 | 118 | £84.81 | |||
| DCTTS-19.00 | 19.00mm | 80.0 | 185.0 | 2 | 118 | £84.81 | |||
| DCTTS-3/4 | 19.05mm | 149.2 | 248.0 | 2 | 118 | £116.02 | |||
| DCTTS-19.50 | 19.50mm | 90.0 | 215.0 | 3 | 118 | £94.49 | |||
| DCTTS-25/32 | 19.844mm | 152.4 | 251.0 | 2 | 118 | £96.53 | |||
| DCTTS-20.00 | 20.00mm | 90.0 | 215.0 | 3 | 118 | £94.49 | |||
| DCTTS-51/64 | 20.241mm | 155.5 | 273.0 | 3 | 118 | £96.54 | |||
| DCTTS-13/16 | 20.638mm | 155.5 | 273.0 | 2 | 118 | £142.13 | |||
| DCTTS-21.00 | 21.00mm | 90.0 | 215.0 | 3 | 118 | £94.49 | |||
| DCTTS-22.00 | 22.00mm | 90.0 | 215.0 | 3 | 118 | £105.33 | |||
| DCTTS-7/8 | 22.225mm | 155.5 | 273.0 | 3 | 118 | £105.54 | |||
| DCTTS-23.00 | 23.00mm | 100.0 | 225.0 | 3 | 118 | £105.33 | |||
| DCTTS-59/64 | 23.416mm | 155.5 | 273.0 | 3 | 118 | £107.37 | |||
| DCTTS-15/16 | 23.813mm | 155.5 | 273.0 | 3 | 118 | £119.03 | |||
| DCTTS-24.00 | 24.00mm | 100.0 | 225.0 | 3 | 118 | £123.29 | |||
| DCTTS-31/32 | 24.606mm | 161.9 | 279.0 | 3 | 118 | £124.18 | |||
| DCTTS-25.00 | 25.00mm | 100.0 | 225.0 | 3 | 118 | £153.22 | |||
| DCTTS-63/64 | 25.003mm | 161.9 | 279.0 | 3 | 118 | £115.48 | |||
| DCTTS-26.00 | 26.00mm | 110.0 | 260.0 | 4 | 118 | £153.22 | |||
| DCTTS-27.00 | 27.00mm | 110.0 | 260.0 | 4 | 118 | £153.22 | |||
| DCTTS-28.00 | 28.00mm | 110.0 | 260.0 | 4 | 118 | £167.03 | |||
| DCTTS-29.00 | 29.00mm | 125.0 | 275.0 | 4 | 118 | £186.85 | |||
| DCTTS-30-00 | 30.00mm | 125.0 | 275.0 | 4 | 118 | £186.85 | |||
| DCTTS-31.00 | 31.00mm | 125.0 | 275.0 | 4 | 118 | £298.08 | |||
| DCTTS-32.00 | 32.00mm | 125.0 | 275.0 | 4 | 118 | £342.23 | |||
| DCTTS-35.00 | 35.00mm | 125.0 | 275.0 | 4 | 118 | £166,446.30 |
